    Truck Products
    SPRAY SUPPRESSANT KIT
    & FITTING INSTRUCTIONS
    ALUMINIUM MUDGUARDS
    Below are fitting instructions for installing the
    onto a curved edge aluminium mudguard.
    Part # SSKIT-P100R
    Spray Suppressant Kit comes with
    2 x Pre formed arches with clips attached
    10 x Aluminium rivets

    Spray Suppressant Arch

    Truck mudguard and brackets - Price List Click Here
    Reseller, original equipment manufacturers, fleet and trade
    please contact us for your discount Ph 02 9627 5944    		 Spray Suppressant Arch

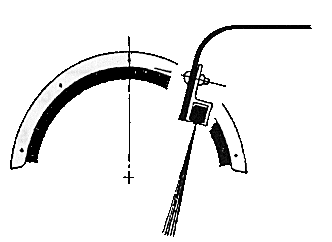

    Ensure the 5 spray suppressant retaining
    clips are spaced evenly around the
    suppressant, all facing the same direction.

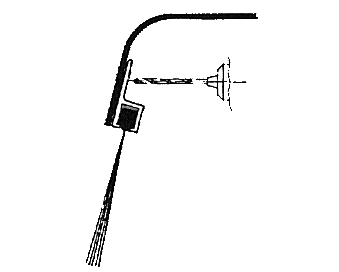

    Position the suppressant evenly on the
    inside of the mudguard & using the clip
    as a guide drill a 5mm hole at the top
    clip postion.

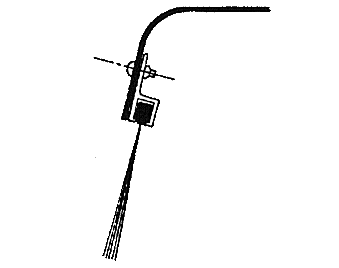

    Attach the clip to the mudguard with
    the supplied rivet, with the head on
    the outside.
    Drill & rivet the 4 remaining clips,
    working from the centre out.




    SPRAY SUPPRESSANT KIT
    & FITTING INSTRUCTIONS
    ALUMINIUM MUDGUARDS

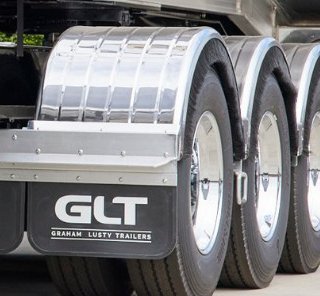

    The SSKIT-P100R Spray Suppressant Kit is designed to be fitted to curved edge aluminium truck mudguards to help reduce road spray and improve safety in wet driving conditions. This kit is commonly used on prime movers, trucks and trailers fitted with aluminium mudguards. The spray suppressant arches attach directly to the mudguard and help control water spray from the tyres, improving visibility for vehicles travelling behind your truck. Manufactured from durable materials, the kit is designed for long service life in demanding transport environments. The kit is simple to install and is supplied with pre-formed suppressant arches and aluminium rivets for easy fitting to aluminium mudguards.

    Benefits
    • Helps reduce tyre spray in wet road conditions
    • Improves visibility and road safety for following vehicles
    • Designed specifically for curved edge aluminium mudguards
    • Pre-formed suppressant arches for easy installation
    • Lightweight and corrosion resistant components
    • Suitable for trucks, trailers and prime movers
    • Simple installation using aluminium rivets
    Kit Contents
    • Part Number: SSKIT-P100R
    • 2 x Pre-formed spray suppressant arches with clips attached
    • 10 x Aluminium rivets
    • Designed to suit curved edge aluminium mudguards

    Basic Fitting Instructions
    • Position the pre-formed suppressant arch along the outer edge of the aluminium mudguard.
    • Ensure the clips align evenly along the mudguard edge.
    • Mark the rivet positions through the clip mounting holes.
    • Drill holes suitable for the supplied aluminium rivets.
    • Secure the suppressant arch to the mudguard using the rivets provided.
    • Check that the arch is firmly secured and evenly fitted along the mudguard.

    FREQUENTLY ASKED QUESTIONS
    What is a spray suppressant kit?
    A spray suppressant kit is designed to reduce the amount of water spray thrown up by truck tyres when driving on wet roads. This helps improve visibility and safety for vehicles travelling behind the truck.

    What mudguards does this kit suit?
    The SSKIT-P100R spray suppressant kit is designed to suit curved edge aluminium truck mudguards commonly used on prime movers and trailers.

    Why is spray suppression important for trucks?
    Spray suppression helps reduce water spray from tyres during wet weather, improving road safety by allowing following drivers to see more clearly.

    Is the kit easy to install?
    Yes. The kit includes pre-formed suppressant arches and aluminium rivets, allowing it to be quickly installed onto aluminium mudguards using basic tools.

    Are spray suppressant kits required on trucks?
    Many transport operators use spray suppression equipment to improve road safety and comply with vehicle safety requirements.

    Will this kit fit Dynaplas aluminium mudguards?
    Yes. The spray suppressant kit is designed to work with Dynaplas curved edge aluminium truck mudguards and similar designs.
