Truck Products

ALUMINIUM CHASSIS MOUNT TUBE
STRAIGHT TRUCK MUDGUARD MOUNTING POLE

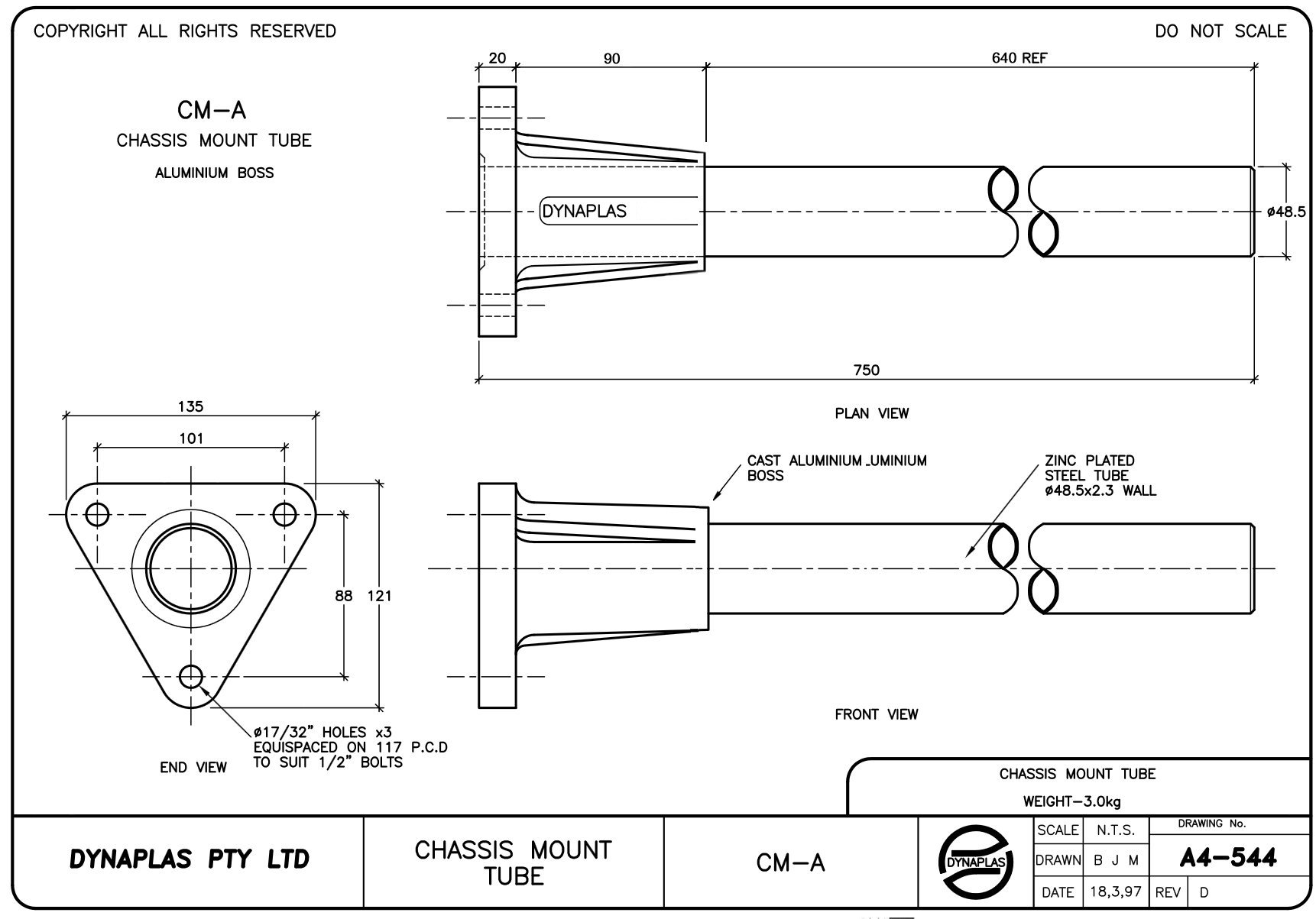

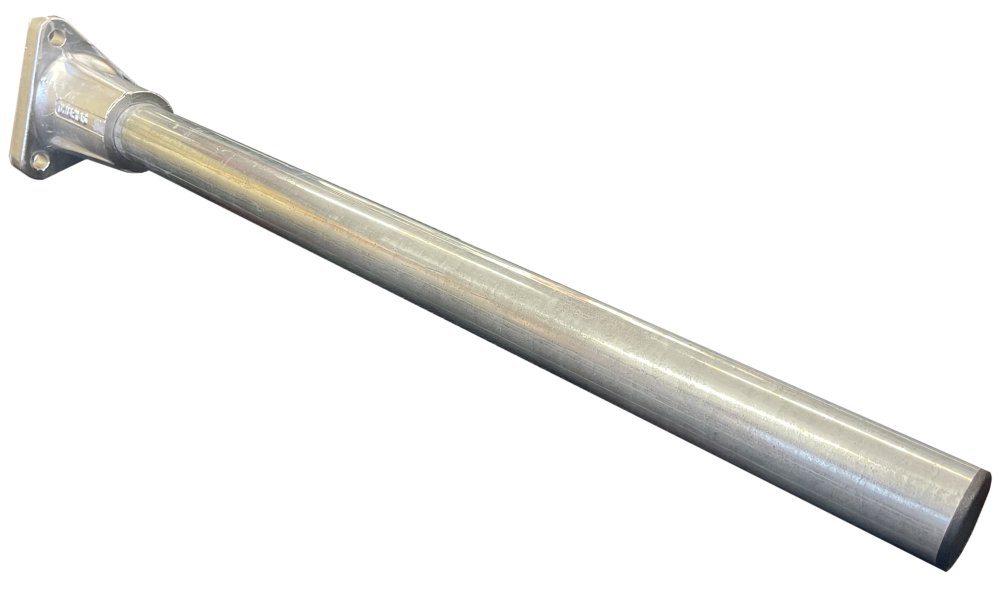

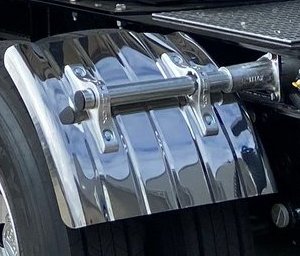

The Dynaplas CM-A aluminium chassis mount tube is a strong and reliable solution for mounting truck mudguards on trailers and heavy vehicles. The following images show sample photos and the technical drawing of our straight cast aluminium mudguard chassis pole.

Designed for installations where there are no obstructions, this straight chassis pole provides a solid mounting point for mudguard brackets and spray suppression systems. The high tensile steel pipe is securely cast into a heavy duty aluminium boss, providing excellent strength and long service life in demanding transport applications.

Each pole features three bolt holes in the aluminium boss for secure attachment to the chassis. This design provides a rigid and dependable mounting system for truck mudguards on trailers and heavy vehicles.

Specifications

Part Number: CM-A
Type: Straight Aluminium Chassis Mount Tube
Length: 750mm
Weight: Approximately 3kg each
High tensile steel pipe cast into aluminium boss
Three bolt holes for strong chassis attachment
Supplied individually
Suitable for mounting truck mudguards on trailers and heavy vehicles

Benefits

Strong and durable mudguard mounting solution
High tensile steel pole provides excellent strength
Cast aluminium boss offers corrosion resistance
Three bolt mounting design for secure chassis attachment
Ideal for trailers where there are no mounting obstructions
Reliable support for truck mudguards and spray suppression systems
Designed for heavy transport and fleet applications

Truck mudguard and mudguard brackets - Price List Click Here
Reseller, original equipment manufacturers, fleet and trade
please contact us for your discount Ph 02 9627 5944

Frequently Asked Questions

What is the CM-A aluminium chassis mount tube used for?
The CM-A chassis mount tube is used as a truck mudguard mounting pole. It provides a strong mounting point for mudguard brackets when fitting truck mudguards to trailers and heavy vehicles.

What vehicles are chassis mount tubes used on?
Chassis mount tubes are commonly used on trucks, semi trailers and other heavy vehicles where truck mudguards need to be mounted securely to the chassis.

What material is the CM-A chassis pole made from?
The CM-A mudguard mounting pole is manufactured from a high tensile steel pipe that is cast into a strong aluminium boss. This combination provides excellent strength and corrosion resistance.

How long is the aluminium chassis mount tube?
The CM-A straight chassis pole is approximately 750mm long and weighs around 3kg each.

How is the chassis pole mounted to the truck or trailer?
The aluminium boss includes three bolt holes which allow the pole to be securely mounted to the chassis rail of the truck or trailer.

Why are aluminium boss chassis poles used for truck mudguards?
Aluminium boss chassis poles provide strong support for truck mudguards while also offering corrosion resistance and long service life in harsh road environments.

Where are straight chassis mount tubes typically used?
Straight chassis mount tubes are ideal for trailer installations where there are no obstructions around the chassis, allowing mudguards to be mounted directly using brackets.

Are these chassis poles suitable for spray suppressant systems?
Yes. These poles are commonly used together with mudguard brackets and spray suppressant systems to support truck mudguards and spray suppression panels.

Are Dynaplas chassis mount tubes made in Australia?
Yes. Dynaplas manufactures high quality truck mudguard mounting components in Australia for the transport industry.

Related Truck Mudguard Mounting Products

Dynaplas manufactures a complete range of truck mudguard mounting components used throughout the Australian transport industry. These products are commonly used together when installing truck mudguards on trucks and trailers.

Truck mudguards – polyethylene, aluminium and stainless steel
Truck mudguard mounting brackets – nylon and aluminium
Truck mudguard chassis poles and mounting tubes
Spray suppressant and mounting clips
Complete mudguard mounting kits for trucks and trailers

These components are designed to work together to provide strong and reliable truck mudguard mounting systems for heavy vehicles operating in demanding road conditions.
