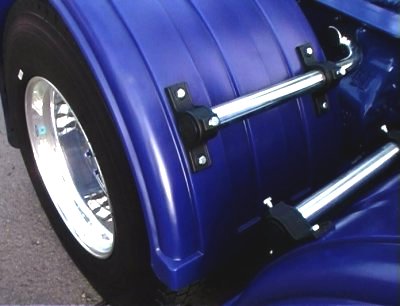

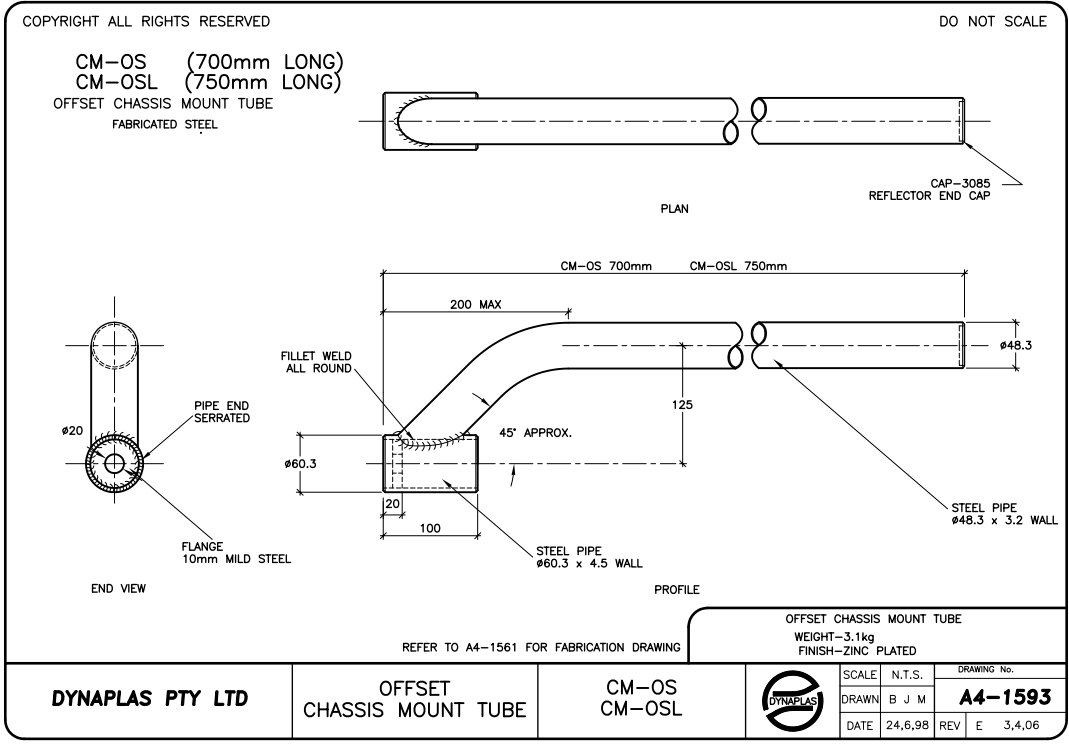

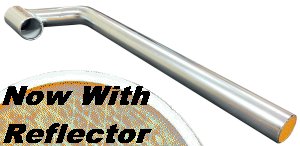

  750mm Offset Steel Chassis Mount Tube – Frequently Asked Questions What is the 750mm offset steel chassis mount tube used for? The 750mm offset steel chassis mount tube is designed to provide a strong and reliable mounting point for truck mudguards. It attaches to the truck or trailer chassis and supports the mudguard bracket, keeping the mudguard securely positioned above the wheels to protect against road spray, stones and debris. Why is the chassis mount tube offset? The offset design allows the mounting pole to clear common obstructions such as air bag suspension systems, chassis rails, cross members and other components found on modern trucks and trailers. This extra clearance makes installation easier while still maintaining proper mudguard alignment and support. What is the advantage of the longer 750mm pole? The 750mm length provides additional reach compared with shorter mounting poles. This is useful for larger mudguards, wider wheel setups or situations where additional clearance from the chassis is required to correctly position the mudguard over the tyres. How many chassis mount tubes are needed for each mudguard? Typically two chassis mount tubes are required to mount one truck mudguard. One tube is installed at the front and one at the rear of the mudguard to provide balanced support and reduce vibration while driving. What material is the 750mm chassis mount tube made from? The mount tube is manufactured from heavy duty high strength steel. This ensures the pole can withstand vibration, road shock and the demanding operating conditions experienced by trucks and trailers in the transport industry. Is this mount tube suitable for heavy transport vehicles? Yes. The 750mm offset steel chassis mount tube is designed for use on trucks, trailers and other heavy vehicles operating in transport, construction, agriculture and logistics applications. Are these poles supplied individually or as a pair? The mount tubes are supplied individually. Since two poles are generally required per mudguard, customers typically purchase them in pairs when installing a mudguard mounting system. Can the mount tube be used with different types of mudguards? Yes. The strong steel construction allows the pole to support aluminium, stainless steel and plastic truck mudguards, as well as mudguards fitted with spray suppression or rubber flap systems. Will the offset design help clear air bag suspension systems? Yes. The offset bend in the pole is specifically designed to provide clearance around air bag suspension components and other chassis equipment that can interfere with straight mounting poles. Are these chassis mount tubes designed for Australian road conditions? Yes. These heavy duty steel poles are designed to withstand the vibration, load stress and harsh operating environments commonly experienced by trucks and trailers operating on Australian roads and highways. Are the mount tubes easy to install? Yes. The simple and practical design allows them to be mounted directly to the chassis and used with standard mudguard brackets. This makes them a reliable and straightforward solution for installing truck mudguards on a wide range of vehicles. Where are these mount tubes commonly used? Offset chassis mount tubes are commonly used on semi-trailers, prime movers, rigid trucks, tippers, flatbed trailers and other heavy transport vehicles where mudguards must be mounted clear of suspension components and chassis obstructions.
|
