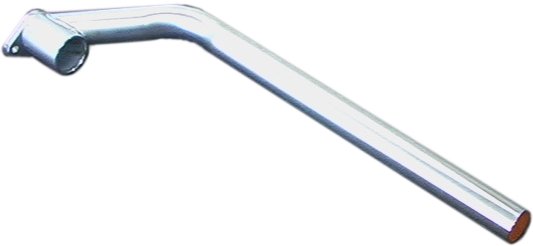

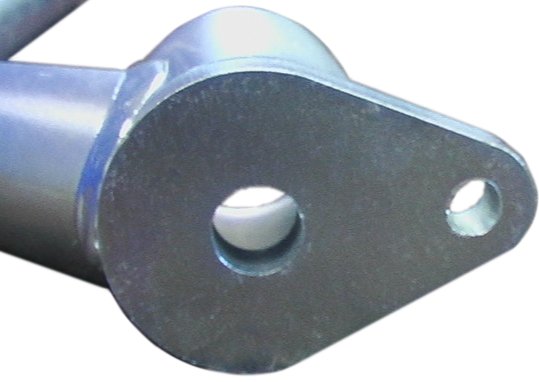

Offset Steel Chassis Mount Tube – Tear Drop (CM-OST) Frequently Asked Questions What is the offset steel chassis mount tube used for? The offset steel chassis mount tube is designed to provide a strong mounting point for truck mudguards. It attaches to the truck or trailer chassis and supports the mudguard brackets, keeping the mudguard securely positioned above the tyres. Why does the chassis mount tube have a tear drop end plate? The tear drop end plate provides a strong mounting surface and includes an additional bolt hole that prevents the pole from rotating once installed. This ensures the mudguard mounting pole stays firmly in position during operation. What is the purpose of the extra bolt hole? The additional bolt hole allows the pole to be securely fastened so it cannot spin on the chassis bracket. This creates a more stable and reliable installation, especially in heavy transport applications where vibration and road shock are common. Why is the pole offset? The offset design allows the pole to clear air bag suspension systems and other chassis components commonly found on modern trucks and trailers. This makes it easier to position the mudguard correctly over the wheels. How many chassis mount tubes are required per mudguard? Two chassis mount tubes are typically required to mount one truck mudguard. One pole is installed at each end of the mudguard to provide balanced support and reduce movement while driving. What material is the chassis mount tube made from? The pole is manufactured from high strength steel and finished with zinc electroplating to help protect the surface from corrosion and extend the service life of the product. How much does the pole weigh? Each CM-OST offset steel chassis mount tube weighs approximately 3.1kg, providing strong and durable support for truck mudguards. Are these poles suitable for trucks and trailers? Yes. These mounting poles are suitable for prime movers, rigid trucks, semi-trailers and other heavy transport vehicles that require strong and reliable mudguard mounting systems. Are the poles sold individually? Yes. Each pole is sold individually, allowing customers to purchase exactly the quantity required for their installation or replacement needs. Are these poles suitable for heavy transport conditions? Yes. These chassis mount tubes are designed to withstand vibration, road shock and demanding operating conditions commonly experienced by trucks and trailers on Australian roads.
|
